At JBC Machine, your trusted provider of metal CNC machining services, we specialize in both CNC drilling and boring services, ensuring that your specific needs are met with the highest level of precision and quality.

The Fundamentals of CNC Drilling

CNC drilling is the process of creating a hole in a material using a rotating drill bit. This method is typically used to produce small-diameter holes quickly and efficiently. Drill bits, available in a wide range of sizes, are designed to remove material as they rotate, effectively creating holes of varying depths and diameters. Drilling is an essential operation for initiating holes that may later be refined by other machining processes. At JBC Machine, we utilize advanced drilling equipment to ensure precision and accuracy, making it suitable for a variety of applications from simple holes to complex multi-step processes.

The Precision of CNC Boring

While drilling initiates a hole, CNC boring is employed to enlarge or refine this initial hole. Boring enhances the diameter and improves the precision of the hole, offering superior control over its finish and size. This process involves using a boring bar, which features a single cutting point, to remove material from the inside of an existing hole. Boring is slower than drilling but provides greater accuracy, making it ideal for applications that require tight tolerances and high-quality finishes. JBC Machine’s boring services are designed to meet the most stringent specifications, ensuring that each bore is perfectly aligned and finished to exact standards.

When to Use CNC Drilling

CNC drilling is best utilized when creating initial holes or when high-speed production is required. It is suitable for applications where the exact diameter and finish are not critical initially, but rather, efficiency and speed are prioritized. For instance, creating pilot holes that will later be enlarged or detailed by other machining processes is a common use of drilling.

When to Use CNC Boring

Boring is the preferred method when precision is the premier objective. It is used to achieve exact dimensions and superior finishes, often following an initial drilling operation. This process is crucial for applications that require high tolerances and fine surface finishes, such as in the automotive, aerospace, and medical device industries. JBC Machine’s boring services ensure that even the most demanding specifications are met with accuracy and consistency.

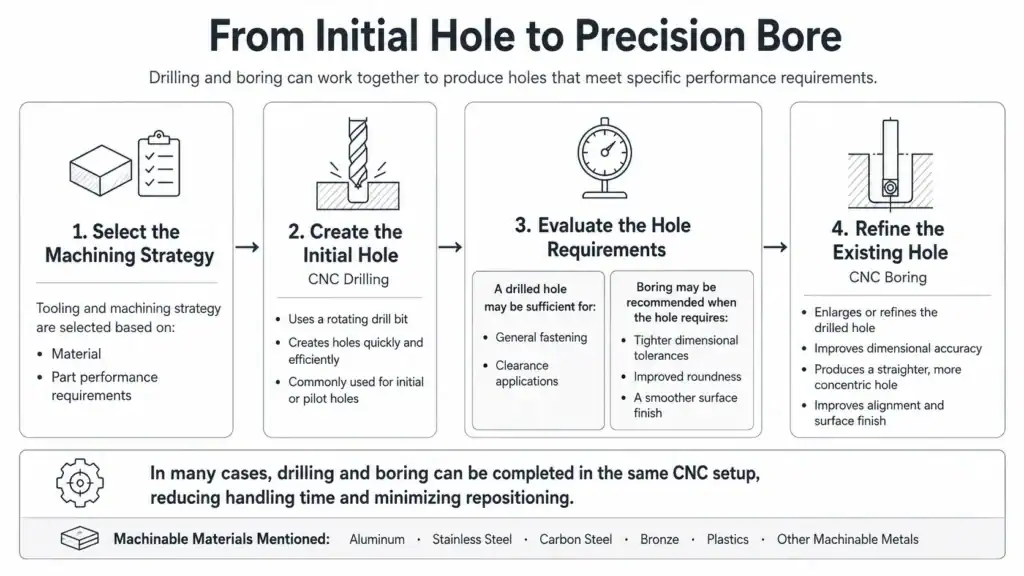

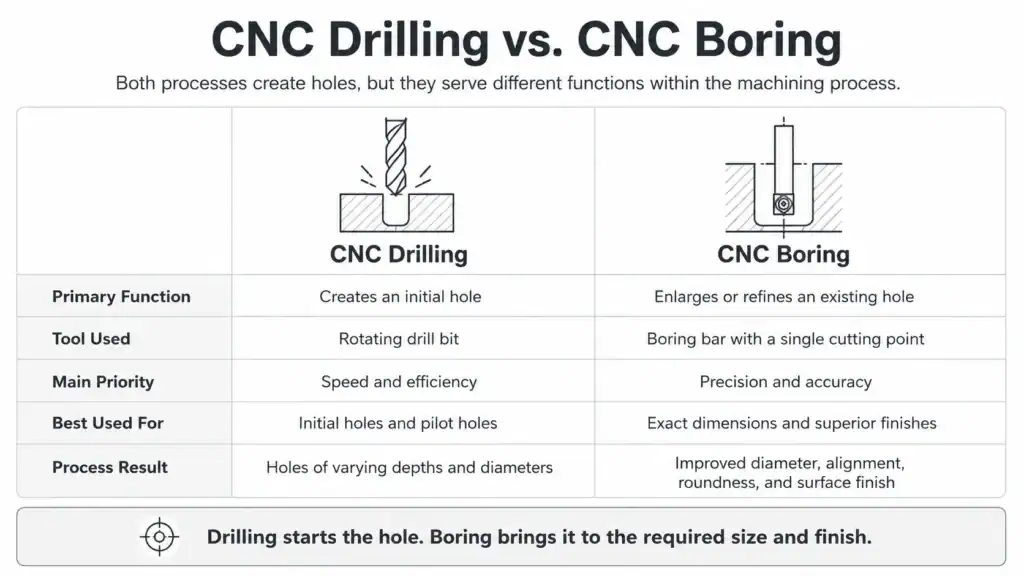

While CNC drilling and boring services both create holes, they serve different functions within the machining process. Drilling is efficient for creating initial holes, while boring is essential for refining and achieving precise dimensions.

For your next machining project, trust JBC Machine to deliver the accuracy and quality you need. Give us a call today at 920.779.1047 or complete our contact form to inquire about our range of precision machining services, or request a free quote right here online.

Frequently Asked Questions

Can a drilled hole be used without boring?
Yes. Many drilled holes are suitable for general fastening or clearance applications. However, if a hole requires tighter dimensional tolerances, improved roundness, or a smoother surface finish, a secondary boring operation is often recommended.

What materials can be drilled and bored using CNC machining?
CNC drilling and boring can be performed on a wide range of materials, including aluminum, stainless steel, carbon steel, bronze, plastics, and other machinable metals. The tooling and machining strategy are selected based on the material and the part’s performance requirements.

Does boring improve hole alignment?
Yes. Boring can correct minor inaccuracies left by the initial drilling process, producing a straighter, more concentric hole with improved dimensional accuracy. This is especially important for components that require precise assembly or rotating parts.

Can CNC drilling and boring be completed in the same setup?
In many cases, yes. Modern CNC machining centers can perform drilling, boring, and other operations within a single setup, helping reduce handling time while improving accuracy by minimizing repositioning.
