Paper Manufacturing
Vacuum/Food Packaging
Interior Furnishing/Mounting Components

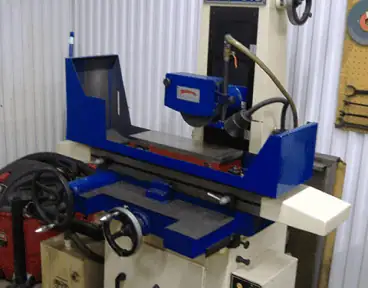

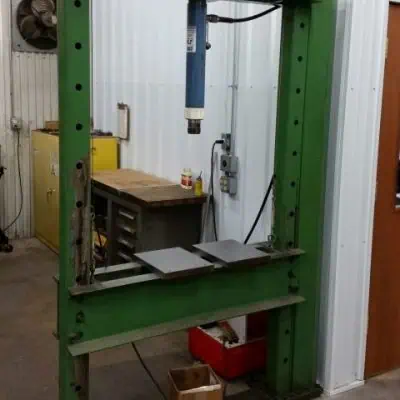

6 x 18 travels, manual operation 1 cut-off saw, 1 vertical saw, 1 25 ton hydraulic press and other support equipment.

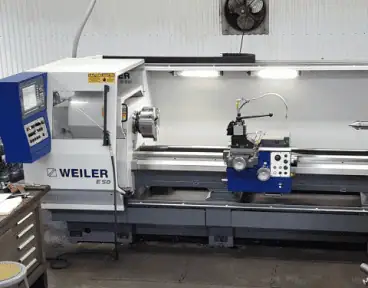

20” swing over ways, 26” swing in gap, 12.18” swing over cross slide, 2.43’ hole through spindle, 80” between centers, 10 hp, .0002 resolution DRO.

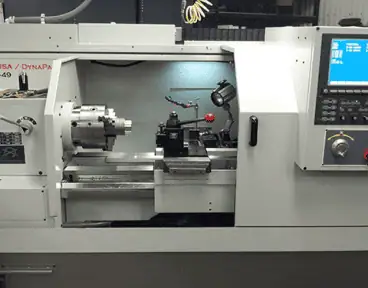

16.1” swing over ways, 8.2” swing over cross slide, 3.15” hole through spindle, 47.2” between centers, 10 hp.
22.44" swing over ways, 13.38" swing over cross slide, 3.26" hole through spindle, 78" between centers, 27 hp.

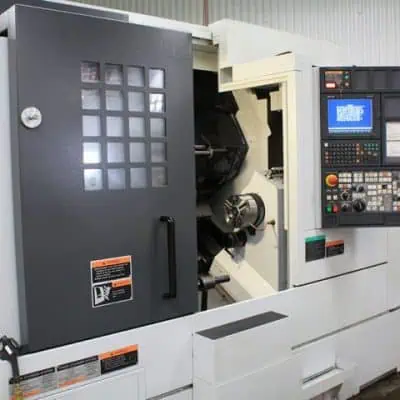

20 hp main and 10 hp sub spindles, each with c axis, y axis, live tooling, 2.50” bar feed capability, 10” dia x 20” long max part size.

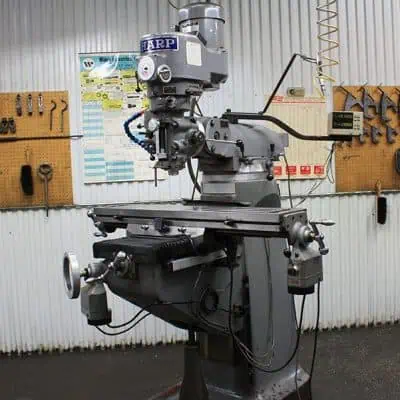

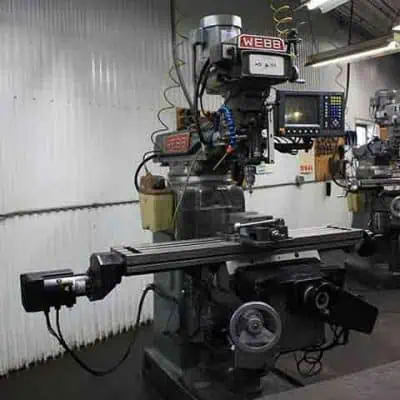

25” x 12” x 14” work envelope, 3 hp, R8 spindle and tooling, .0005 resolution DRO.

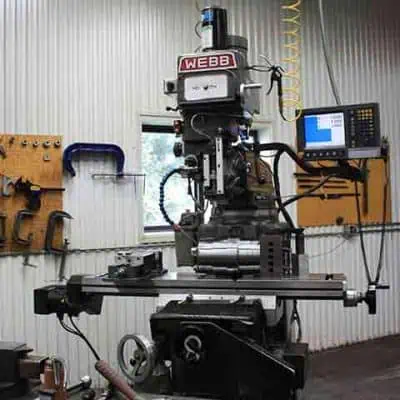

Travels 30”X by 15”Y by 14”Z, equipped with Universal quick change spindle and tooling, 3 hp spindle.
30” x 15” x 14” work envelope, 5 hp, #40 BT spindle and tooling.
Travels 40.16” X by 24.00” Y by 24.00” Z, 27.95” from spindle nose to table, Cat 40 tooling, 30 tool ATC, 29.5hp 15,000 rpm spindle, featuring fully programmable 4th axis: Tsudakoma RBA-250R rotary table with tailstock, 10” chuck, 2.79″ thru bore

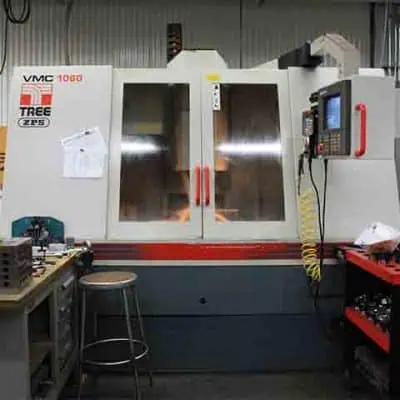

Travels 40”X by 24”Y by 25”Z, 24 tool ATC, 20 hp spindle.

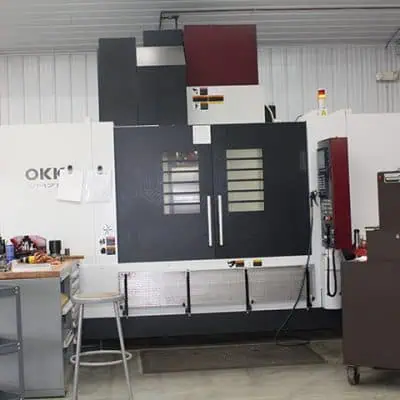

Travels 60.24” X by 29.13” Y by 25.98” Z, 31.89” from spindle nose to table, Cat 50 tooling, 30 tool ATC, 40hp 13,000 rpm spindle, featuring fully programmable 4th axis: Tsudakoma RBA-320R rotary table with tailstock, 12” chuck, 3.97″ thru bore

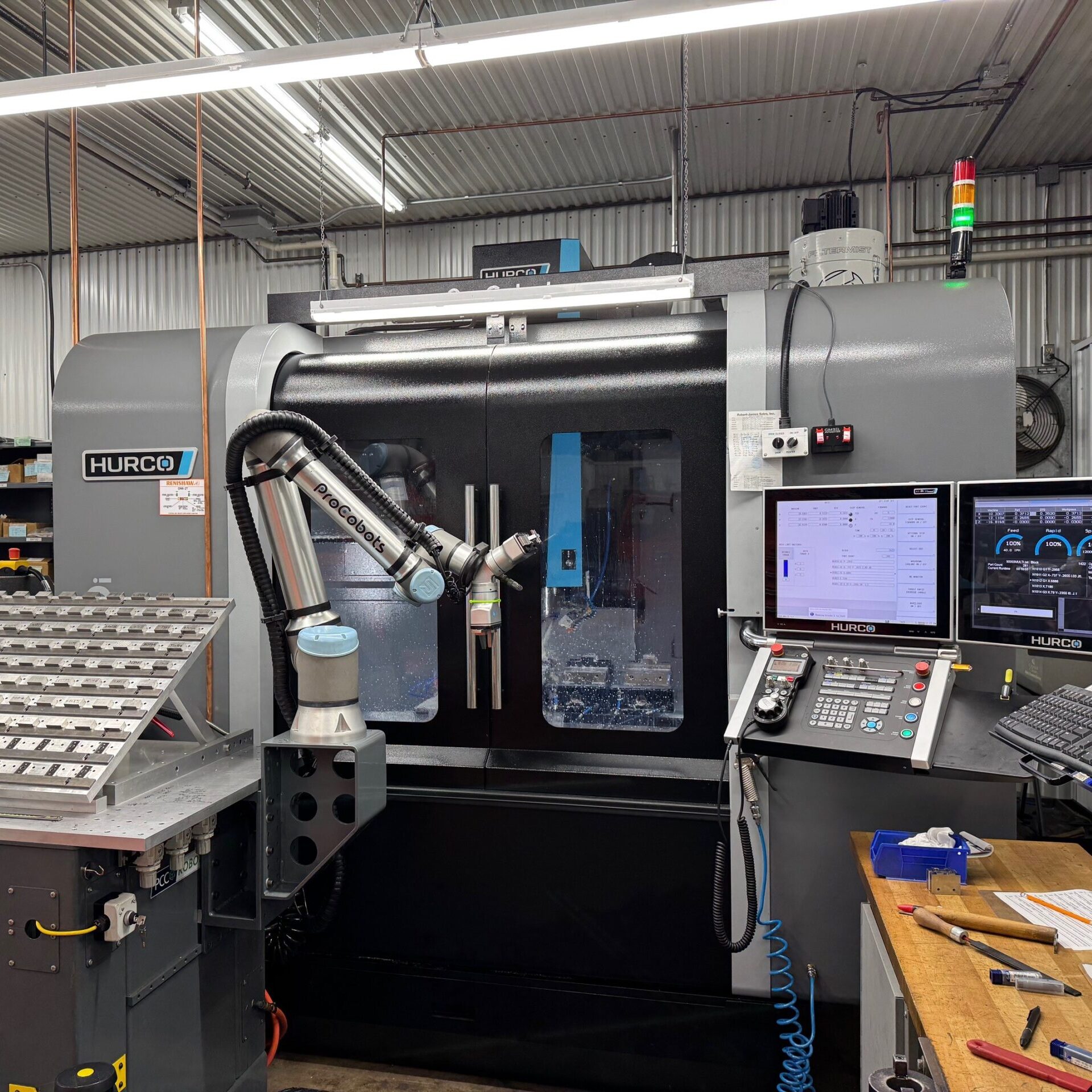

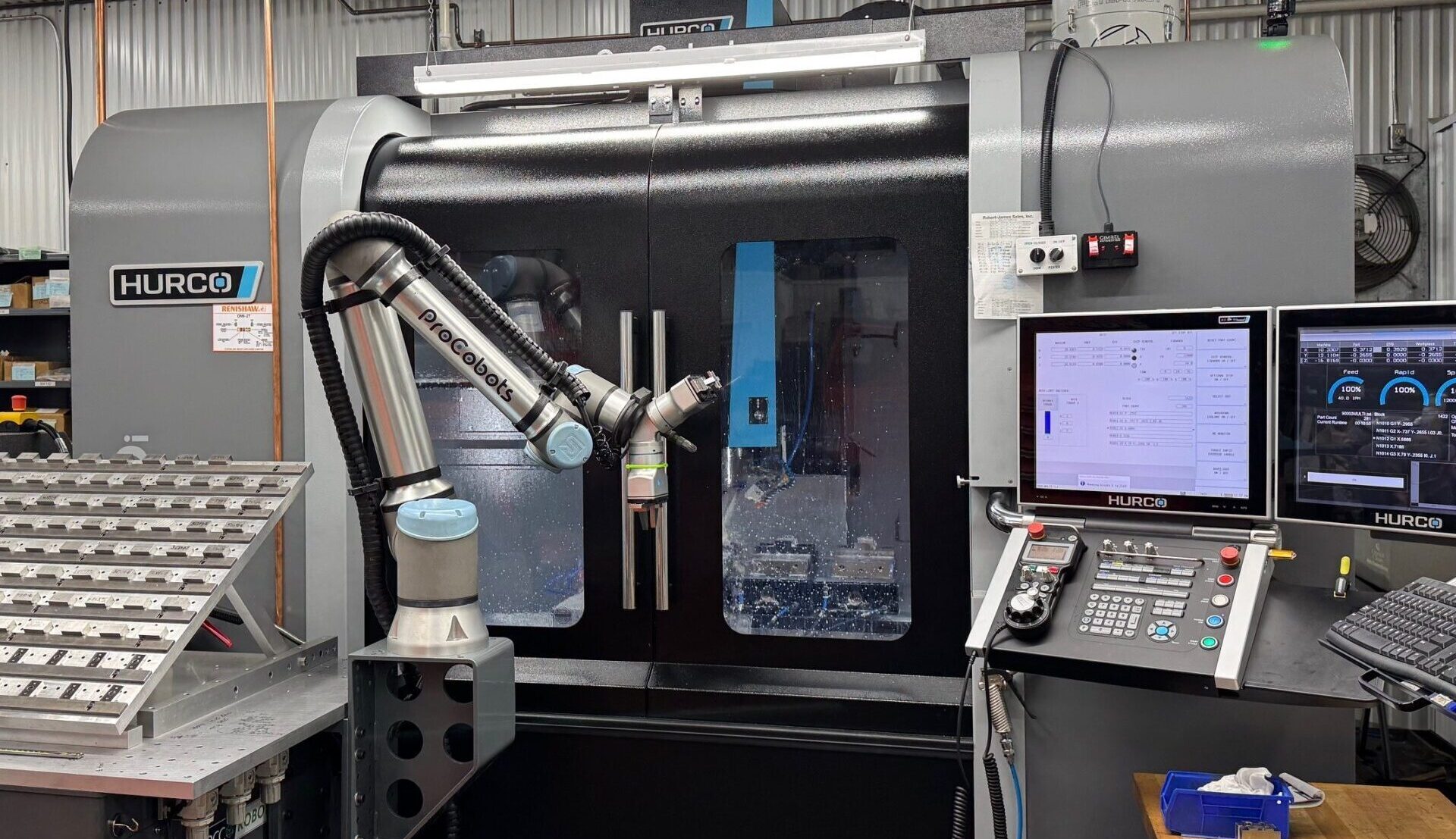

Travels 44.09″ X by 24.02″ Y by 18.11″ Z, 24.02″ from spindle nose to table, Cat 40 tooling, 30 tool ATC, 30hp 20.000 rpm spindle.
Travels 41.34″ X by 20.87″ Y by 20.08″ Z, 25.98″ from spindle nose to table, Cat 40 tooling, 30 tool ATC, 20hp 20.000 rpm spindle.
